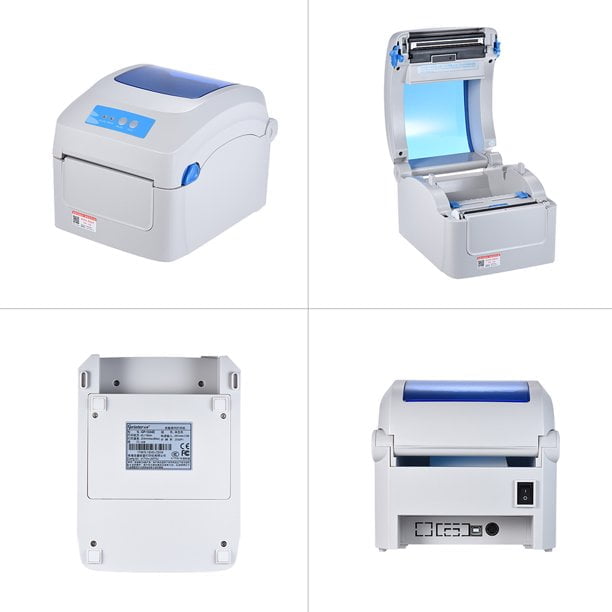

รายละเอียด Gprinter GP1324D

by

Printing

Print MethodDirect Thermal
Print Speed2-8 inch/s (51-203mm/s)
InterfaceUSB
Print Resolution200 dpi
Dot Size0.125×0.125mm (1mm=8dots)
Print WidthMax.104mm (4.09″)
Print LengthMax. 2286mm (90″)

Physical Properties

Print Dimensions285x210x180mm (WxDxH)
Printer WeightApprox. 2.09KG
Operation ConditionTemperature : 5-45C (41-104F), Humidity : 25-85% RH
Storage ConditionTemperature : -10-50C (10-140F), Humidity : 10-90% RH
Print Head50KM
Power SupplyInput : AC 110V/240V Output : DC24V/2.5A, 60W

Media

Media Roll OD130mm OD
Media TypeContinuous, black, mark, gap, punched hole, Fan fold labels etc.
Media Rolling Up MethodPrinting side outward rolling
Media Width (+Linner)Max. 120mm (4.72″) Min.20mm (0.78″)
Media Thickness (+Linner)Max.0.254mm (10mil) Min.0.06mm (2.36mil)
Media Roll Core Size25.4mm – 38mm (1″-1.5″)
Media GapMin.2 mm (0.09″)
Label Length10-2286mm (0.39″-90″)
